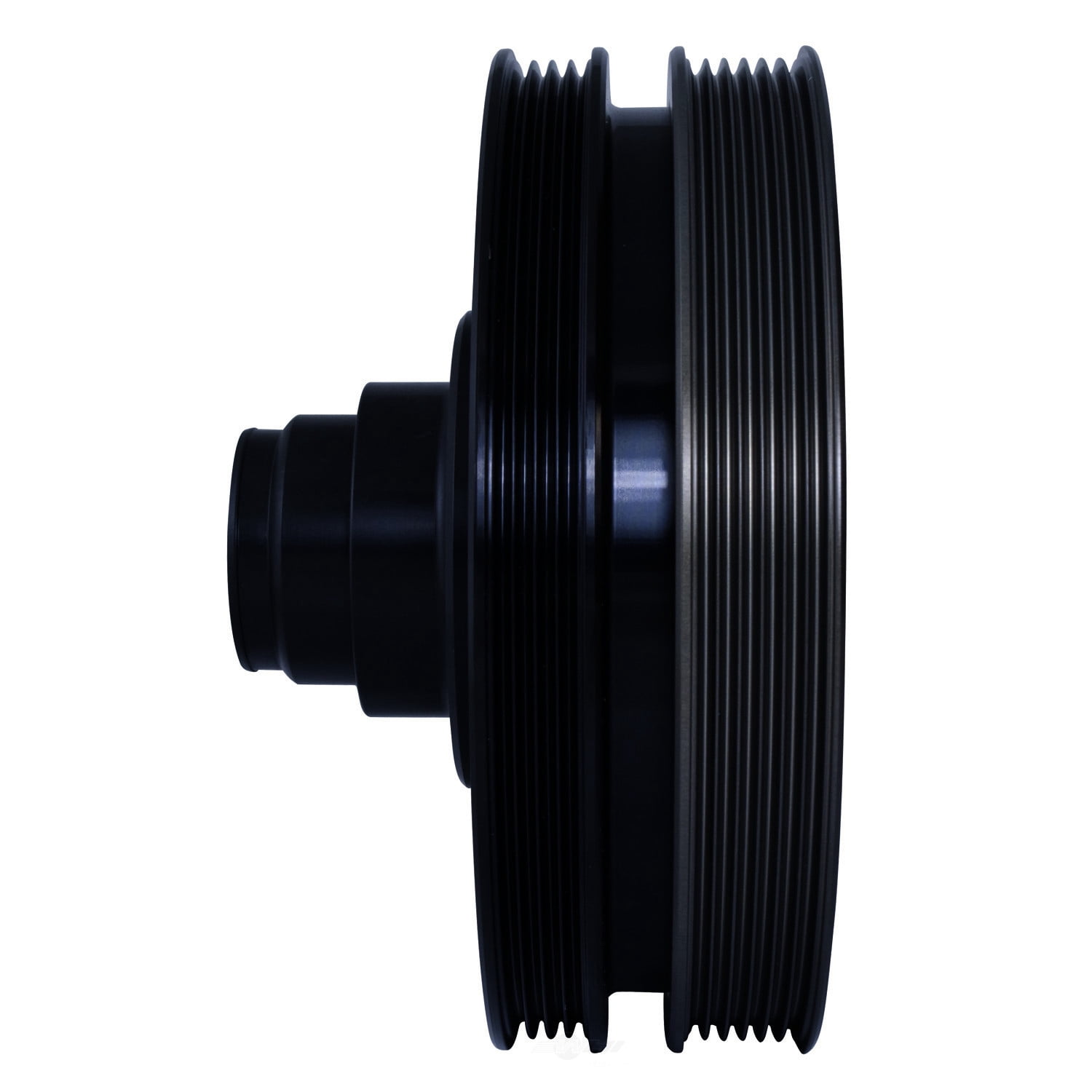

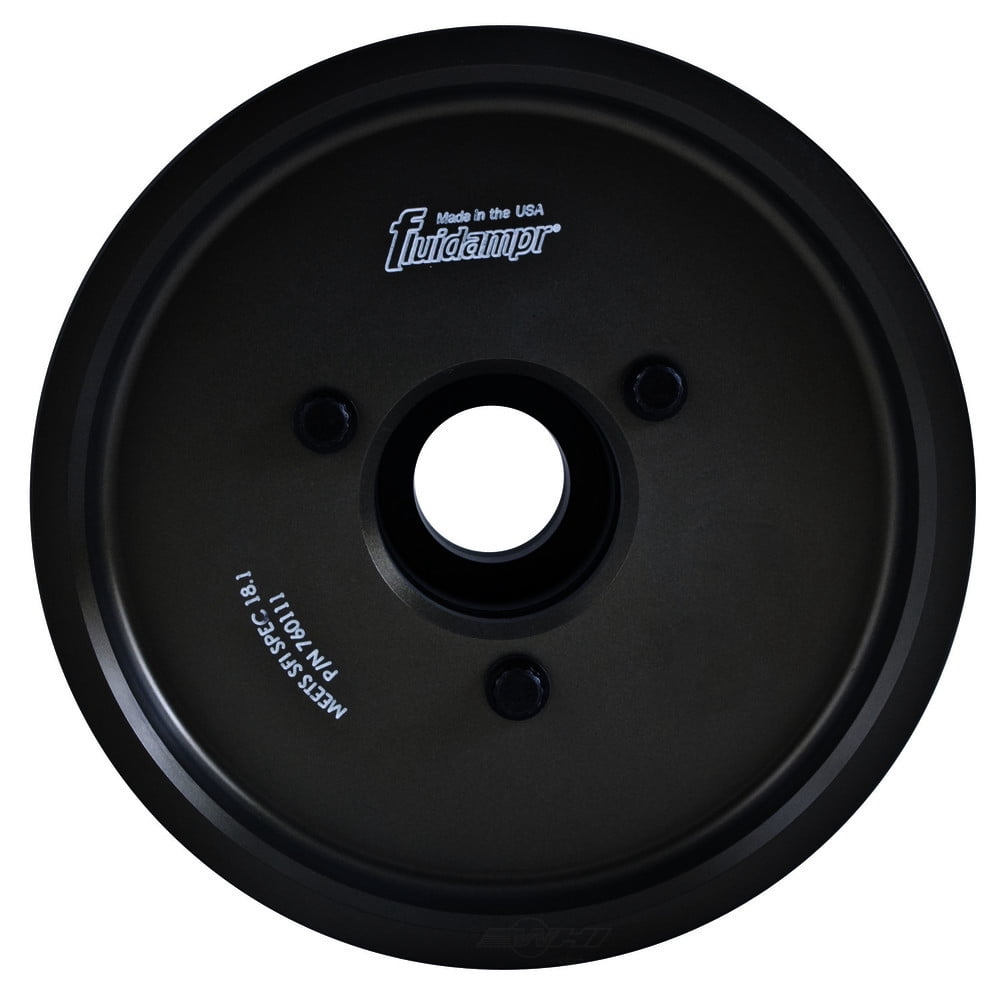

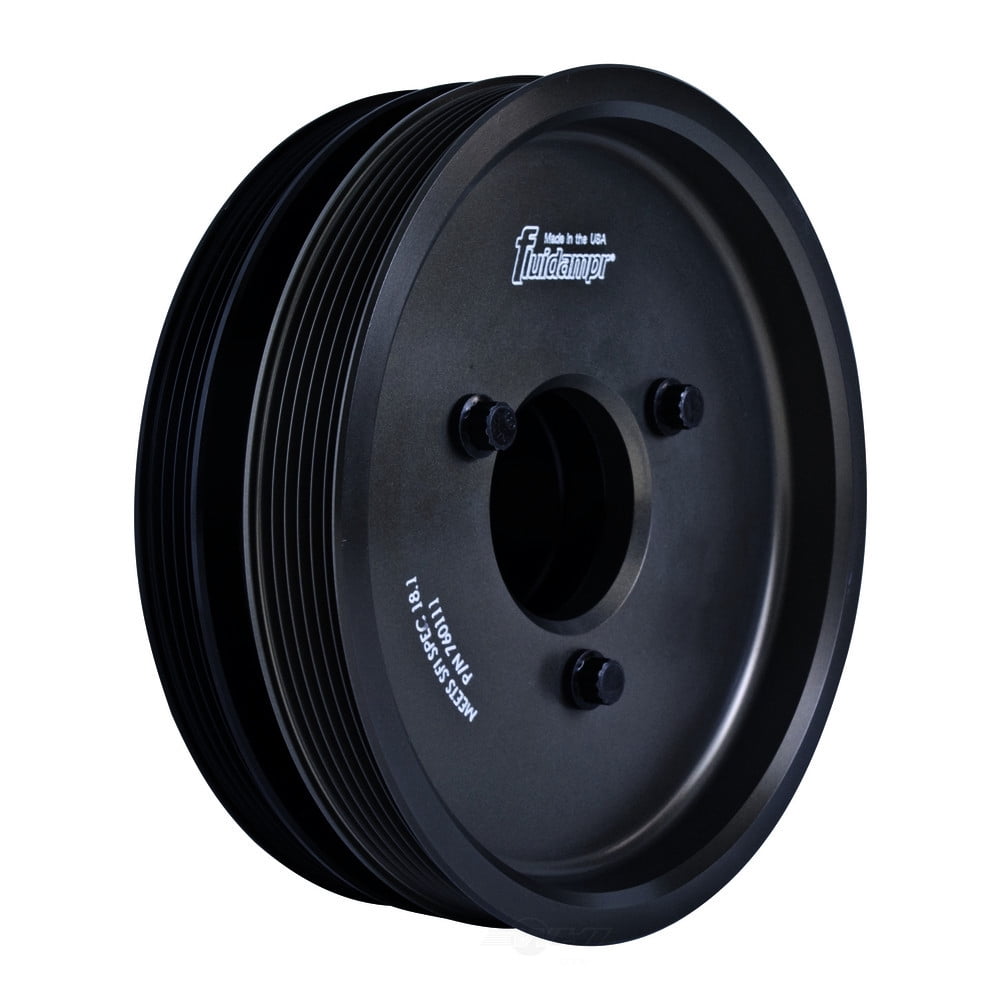

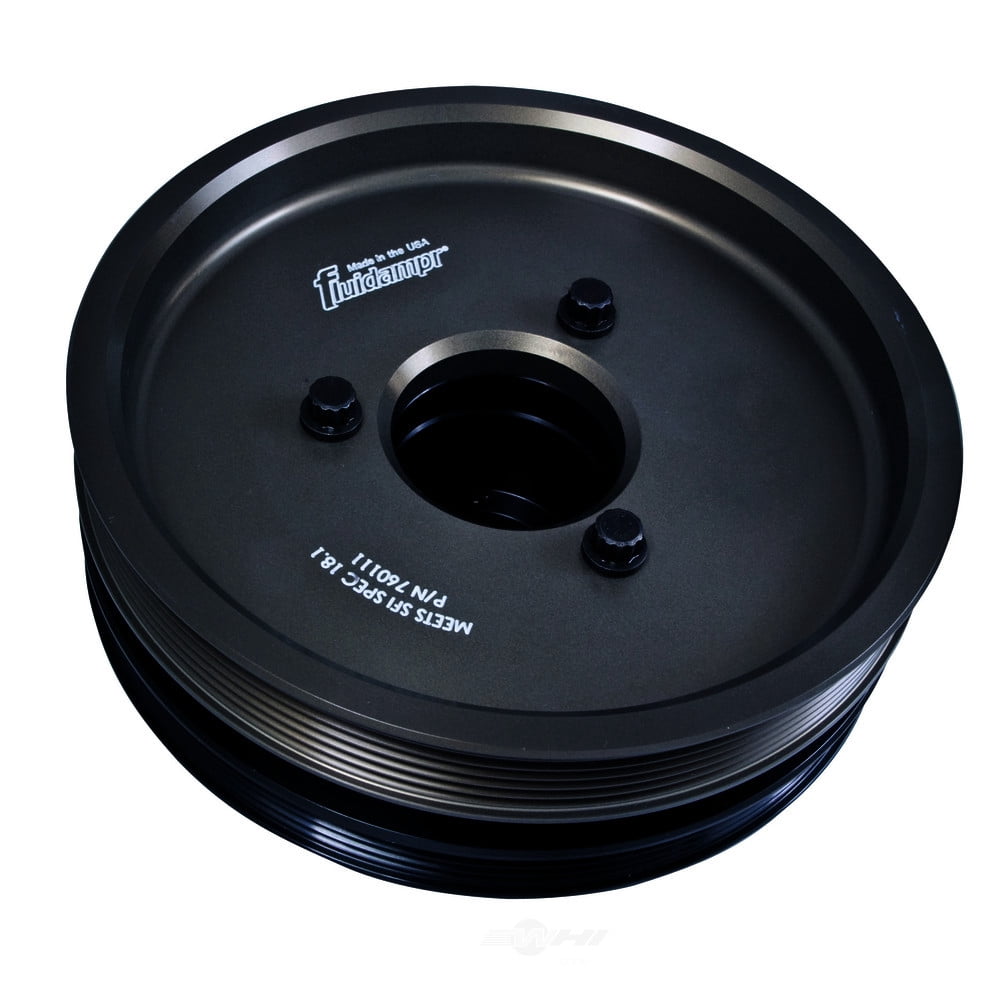

Fluidampr 760111 Engine Harmonic Balancer

Fluidampr 760111 Engine Harmonic Balancer. TITLE: Fluidampr - 760111 - Harmonic Balancer - Fluidampr - LSx/Lxx SBC - Camaro SS / LS1 GM Truck - Each. Finish: Black Zinc. Length: 4.380. Material: Steel, Aluminum Pulley. Pulley Size: Stock. Bore Diameter: 1.4803. Pulley Finish: Hard Coat Anodized. Safety Rating: SFI 18.1. Engine Balance: Internal. Outside Diameter: 7-3/4. Weight / Rotating Weight: 15.9 lbs / 10.6 lbs.

Fluidampr Engine Dampers are designed to control destructive vibrations which are transfered thru the crankshaft.
Each time the air/fuel mixture inside a cylinder is ignited, the combustion that occurs creates a torque spike that is applied to the crankshaft through the piston and rod. This torque spike is so severe that it not only turns the crankshaft, it actually twists the crankshaft ahead of its normal rotation and then the crankshaft rebounds. This twisting action is known as torsional vibration. When these torque spikes and forces get into phase with the natural frequency, critical torsional harmonic vibrations occur and can be seriously destructive to the bearings and the crankshaft. Dampers are designed to control those destructive vibrations.
Critical harmonic vibrations occur numerous times in a engine’s operating range. Stock rubber and elastomer-type dampers are frequency sensitive “tuned absorbers”, and work at only one critical frequency. In the case of a stock rubber damper, it is tuned for a factory engine’s critical harmonic vibrations. If you change the mass of pistons, rods, or the crankshaft, you change the natural frequency of the crankshaft assembly; therefore, the stock damper is no longer tuned to the new frequency of vibration, and you may be headed for early failure of expensive engine components. Dampers also create heat while they work, and rubber is a poor dissipator of heat. This heat and the exposure to the elements deteriorates rubber, causing it to crack and change durometer, which then leads to inertia ring slippage, damper failure, uncontrolled torsional vibration, and costly engine parts breakage.


Additional Features

• Finish:Black Zinc

Manufacturer part number	660101
Vehicle model	LS3
Vehicle year	2010, 2011, 2012, 2013, 2014, 2015
Vehicle make	Chevy
Vehicle mount location	Rear
Vehicle fitment type	Universal
Automotive parts division	Direct Replacement
Brand	Fluidampr
Automotive specialty part type	Engine Harmonic Balancer
Features	Engraved
Material	Steel
Finish	Machined
Weight	8.9 lb
Vehicle type	Car, Truck, Sport Utility Vehicle, CUV, Crossover & Minivan
Pack quantity	1
