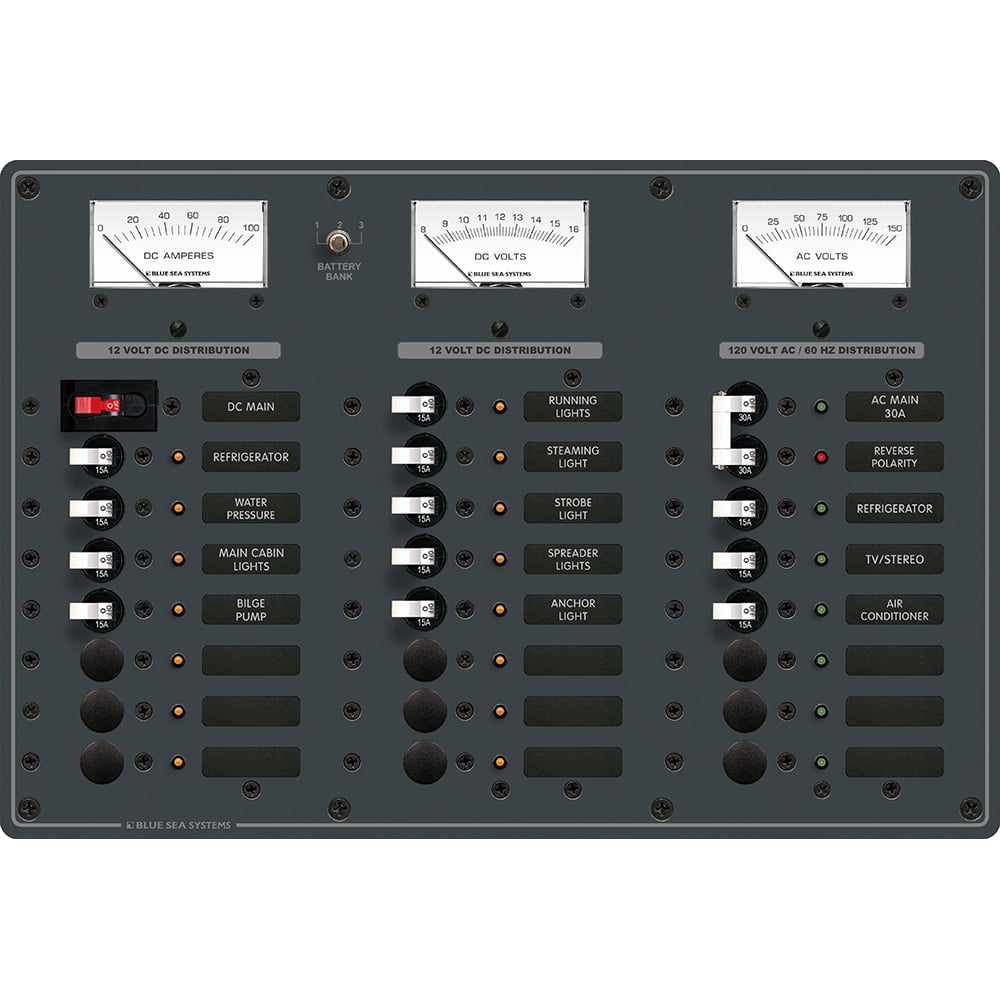

Blue Sea Systems 8084 AC Main and 6-Position/DC Main and 15-Position Circuit-Breaker Panel

<p></p><p><strong>8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches</strong></p><p><strong>Features:</strong></p><ul><li>Includes set of 30 common AC and 30 common DC labels</li><li>All AC and DC buses installed, fully pre-wired</li><li>Label backlighting pre-installed</li><li>All LEDs installed</li><li>Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC</li></ul><p><strong>AC Features:</strong></p><ul><li>Red reverse polarity indicating LED</li><li>Ready for installation of optional 4029 AC Isolation Cover</li><li>9353, 0-150 Volt AC Voltmeter</li></ul><p><strong>DC Features:</strong></p><ul><li>100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits</li><li>8003, 8-16 Volt DC Voltmeter</li><li>8017, 0-100 Amp DC Ammeter</li><li>Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter</li></ul><p><strong>Specifications:</strong></p><ul><li>AC Positions: Main +6</li><li>DC Positions: Main +15</li><li>120 Volts AC</li><li>12 Volts DC</li><li>(1) 30A - (3) 15A AC Circuit Breakers</li><li>(1) 100A - (9) 15A DC Circuit Breakers</li></ul><p>*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards</p><p><strong>WARNING:</strong> This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to <a href="http://P65Warnings.ca.gov">P65Warnings.ca.gov</a>.</p> <p></p><p><b>Specifications:</b></p><ul><li>Max Breaker Quantity: 6 AC / 15 DC</li><li>AC/DC: Both</li><li>Voltage: 120v/12v</li><li>Box Dimensions: 7"H x 15"W x 23"L WT: 8.6 lbs</li><li>UPC: 632085080846</li></ul><br><a href="https://productimageserver.com/literature/ownersManual/14573OM.pdf">Owner's Manual (pdf)</a>

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches

Features:

• Includes set of 30 common AC and 30 common DC labels
• All AC and DC buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC

AC Features:

• Red reverse polarity indicating LED
• Ready for installation of optional 4029 AC Isolation Cover
• 9353, 0-150 Volt AC Voltmeter

DC Features:

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter
• 8017, 0-100 Amp DC Ammeter
• Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

• AC Positions: Main +6
• DC Positions: Main +15
• 120 Volts AC
• 12 Volts DC
• (1) 30A - (3) 15A AC Circuit Breakers
• (1) 100A - (9) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
